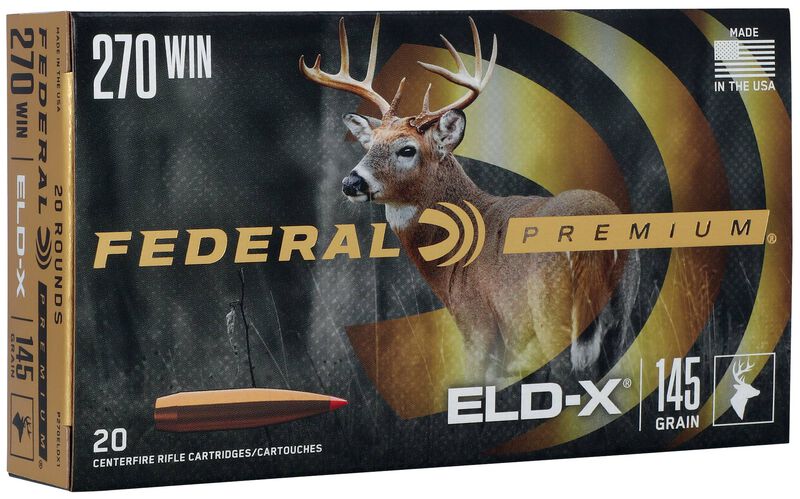

Federal Premium
ELD-X
.270 Winchester · 145gr · ELD-X
Muzzle Velocity
2,890
fps
Muzzle Energy
2,689
ft-lbs
Ballistic Coefficient
0.270 G7
G7
Sectional Density
0.270
Bullet Information
ManufacturerHornady
Bullet145gr ELD-X
Diameter0.277"
TypeELD-X
BC (G7)0.270 G7
BC (G1)0.536 G1
Sectional Density0.270
Load Information
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,890fps | 2,689ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,715fps | 2,373ft-lbs | 0 | 0 | 0.6 | 0.107 |
| 200 yd | 2,546fps | 2,087ft-lbs | -3.2 | -1.5 | 2.4 | 0.221 |
| 300 yd | 2,383fps | 1,828ft-lbs | -11.8 | -3.8 | 5.6 | 0.343 |
| 400 yd | 2,226fps | 1,595ft-lbs | -26.5 | -6.3 | 10.2 | 0.473 |
| 500 yd | 2,076fps | 1,387ft-lbs | -48.3 | -9.2 | 16.5 | 0.613 |
| 600 yd | 1,931fps | 1,200ft-lbs | -78.1 | -12.4 | 24.6 | 0.763 |
| 700 yd | 1,791fps | 1,033ft-lbs | -117.3 | -16 | 34.7 | 0.924 |
| 800 yd | 1,656fps | 883ft-lbs | -167.3 | -20 | 47.1 | 1.098 |
| 900 yd | 1,526fps | 749ft-lbs | -230 | -24.4 | 62.1 | 1.287 |
| 1000 yd | 1,400fps | 631ft-lbs | -307.8 | -29.4 | 79.9 | 1.492 |
