Barnes

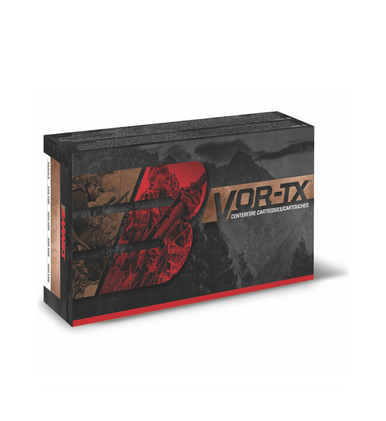

VOR-TX Rifle TTSX 300 Wby Mag 180 GR BT
.300 Weatherby Magnum · 180gr · Tipped Triple-Shock X
Muzzle Velocity
3,100
fps
Muzzle Energy
3,842
ft-lbs
Ballistic Coefficient
0.245 G7
G7
Sectional Density
0.271
Bullet Information
ManufacturerBarnes
Bullet180gr Tipped Triple-Shock X
Diameter0.308" (7.62mm)
TypeTTSX
BC (G7)0.245 G7
BC (G1)0.484 G1
Sectional Density0.271
Load Information
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 3,100fps | 3,840ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,901fps | 3,364ft-lbs | 0 | 0 | 0.6 | 0.1 |
| 200 yd | 2,709fps | 2,932ft-lbs | -2.6 | -1.3 | 2.4 | 0.207 |
| 300 yd | 2,523fps | 2,544ft-lbs | -10 | -3.2 | 5.5 | 0.322 |
| 400 yd | 2,345fps | 2,197ft-lbs | -22.9 | -5.5 | 10.2 | 0.445 |
| 500 yd | 2,174fps | 1,888ft-lbs | -42.1 | -8 | 16.6 | 0.578 |
| 600 yd | 2,010fps | 1,615ft-lbs | -68.6 | -10.9 | 24.8 | 0.722 |
| 700 yd | 1,854fps | 1,373ft-lbs | -103.8 | -14.2 | 35.1 | 0.877 |
| 800 yd | 1,703fps | 1,159ft-lbs | -149.1 | -17.8 | 47.8 | 1.046 |
| 900 yd | 1,558fps | 969ft-lbs | -206.5 | -21.9 | 63.2 | 1.23 |
| 1000 yd | 1,418fps | 803ft-lbs | -278.2 | -26.6 | 81.7 | 1.432 |
