Barnes

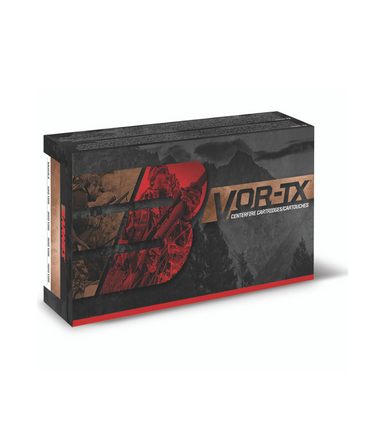

VOR-TX Rifle TAC-TX 300 AAC Blackout 120 GR BT
.300 AAC Blackout · 120gr · TAC-TX
Muzzle Velocity
2,100
fps
Muzzle Energy
1,175
ft-lbs
Ballistic Coefficient
0.358 G1
G1
Sectional Density
0.181
Bullet Information
ManufacturerBarnes
Bullet120gr TAC-TX
Diameter0.308" (7.62mm)
TypeTTSX
BC (G1)0.358 G1
Sectional Density0.181
Load Information
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,100fps | 1,175ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 1,883fps | 945ft-lbs | 0 | 0 | 1.4 | 0.151 |
| 200 yd | 1,682fps | 754ft-lbs | -8.3 | -4 | 5.9 | 0.319 |
| 300 yd | 1,499fps | 598ft-lbs | -29 | -9.2 | 14.1 | 0.508 |
| 400 yd | 1,337fps | 476ft-lbs | -65.2 | -15.6 | 26.3 | 0.721 |
| 500 yd | 1,203fps | 385ft-lbs | -121 | -23.1 | 42.8 | 0.958 |
| 600 yd | 1,099fps | 322ft-lbs | -200.7 | -31.9 | 63.7 | 1.219 |
| 700 yd | 1,024fps | 279ft-lbs | -309.2 | -42.2 | 88.4 | 1.502 |
| 800 yd | 967fps | 249ft-lbs | -450.8 | -53.8 | 116.4 | 1.804 |
| 900 yd | 920fps | 226ft-lbs | -629.7 | -66.8 | 147.4 | 2.123 |
| 1000 yd | 880fps | 206ft-lbs | -849.8 | -81.2 | 181.1 | 2.457 |
