Barnes

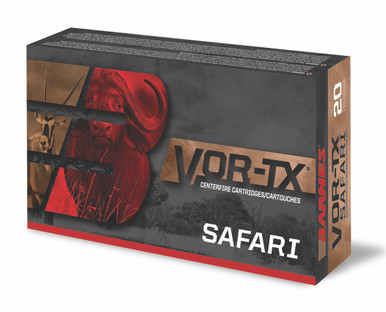

VOR-TX Safari BANDED SOLID 470 Nitro Express 500 GR FN
.470 Nitro Express · 500gr · Banded Solid
Muzzle Velocity
2,150
fps
Muzzle Energy
5,133
ft-lbs
Ballistic Coefficient
0.243 G1
G1
Sectional Density
0.318
Bullet Information
ManufacturerBarnes
Bullet500gr Banded Solid
Diameter0.474"
TypeMONO
BC (G1)0.243 G1
Sectional Density0.318
Load Information
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,150fps | 5,131ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 1,831fps | 3,723ft-lbs | 0 | 0 | 2.1 | 0.151 |
| 200 yd | 1,547fps | 2,657ft-lbs | -9 | -4.3 | 8.9 | 0.33 |
| 300 yd | 1,308fps | 1,900ft-lbs | -32.6 | -10.4 | 21.5 | 0.541 |
| 400 yd | 1,130fps | 1,417ft-lbs | -76.6 | -18.3 | 40.6 | 0.789 |
| 500 yd | 1,015fps | 1,143ft-lbs | -147.8 | -28.2 | 65.5 | 1.07 |
| 600 yd | 937fps | 974ft-lbs | -252.8 | -40.2 | 95.2 | 1.378 |
| 700 yd | 876fps | 851ft-lbs | -397.4 | -54.2 | 129.1 | 1.71 |
| 800 yd | 825fps | 755ft-lbs | -587.4 | -70.1 | 166.8 | 2.064 |
| 900 yd | 780fps | 675ft-lbs | -828.7 | -87.9 | 208.2 | 2.439 |
| 1000 yd | 739fps | 606ft-lbs | -1127.5 | -107.7 | 253.5 | 2.836 |
