Barnes

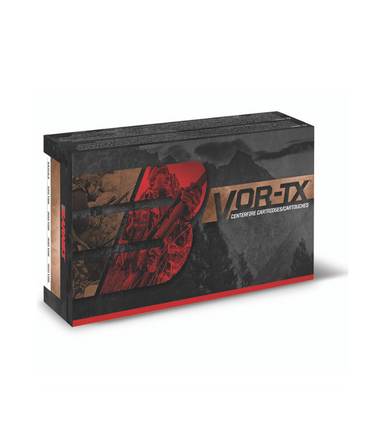

VOR-TX Rifle TTSX 300 WSM 150 GR
.300 Winchester Short Magnum · 150gr · Tipped Triple-Shock X
Muzzle Velocity
3,310
fps
Muzzle Energy
3,650
ft-lbs
Ballistic Coefficient
0.188 G7
G7
Sectional Density
0.226
Bullet Information
ManufacturerBarnes
Bullet150gr Tipped Triple-Shock X
Diameter0.308" (7.62mm)
TypeTTSX
BC (G7)0.188 G7
BC (G1)0.369 G1
Sectional Density0.226
Load Information
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 3,310fps | 3,648ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 3,045fps | 3,088ft-lbs | 0 | 0 | 0.7 | 0.094 |
| 200 yd | 2,790fps | 2,591ft-lbs | -2.3 | -1.1 | 2.8 | 0.197 |
| 300 yd | 2,545fps | 2,157ft-lbs | -9 | -2.9 | 6.7 | 0.31 |
| 400 yd | 2,313fps | 1,781ft-lbs | -21.1 | -5 | 12.5 | 0.434 |
| 500 yd | 2,093fps | 1,459ft-lbs | -39.8 | -7.6 | 20.6 | 0.57 |
| 600 yd | 1,886fps | 1,185ft-lbs | -66.4 | -10.6 | 31.2 | 0.721 |
| 700 yd | 1,689fps | 950ft-lbs | -102.8 | -14 | 44.8 | 0.889 |
| 800 yd | 1,501fps | 751ft-lbs | -151.5 | -18.1 | 62 | 1.077 |
| 900 yd | 1,324fps | 584ft-lbs | -215.7 | -22.9 | 83.5 | 1.29 |
| 1000 yd | 1,159fps | 448ft-lbs | -299.8 | -28.6 | 110.2 | 1.533 |
