Barnes

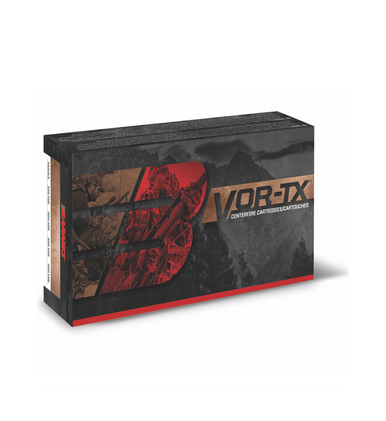

VOR-TX Rifle TAC-TX 300 AAC Blackout 110 GR FB
.300 AAC Blackout · 110gr · TAC-TX
Muzzle Velocity
2,350
fps
Muzzle Energy
1,349
ft-lbs
Ballistic Coefficient
0.289 G1
G1
Sectional Density
0.166
Bullet Information
ManufacturerBarnes
Bullet110gr TAC-TX
Diameter0.308" (7.62mm)
TypeTTSX
BC (G1)0.289 G1
Sectional Density0.166
Load Information
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,350fps | 1,349ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,065fps | 1,042ft-lbs | 0 | 0 | 1.5 | 0.136 |
| 200 yd | 1,802fps | 793ft-lbs | -6.7 | -3.2 | 6.4 | 0.292 |
| 300 yd | 1,564fps | 597ft-lbs | -24.2 | -7.7 | 15.4 | 0.471 |
| 400 yd | 1,357fps | 449ft-lbs | -56 | -13.4 | 29.2 | 0.677 |
| 500 yd | 1,190fps | 346ft-lbs | -106.8 | -20.4 | 48.4 | 0.913 |
| 600 yd | 1,070fps | 280ft-lbs | -182.1 | -29 | 72.9 | 1.18 |
| 700 yd | 989fps | 239ft-lbs | -287.7 | -39.3 | 101.9 | 1.473 |
| 800 yd | 927fps | 210ft-lbs | -429 | -51.2 | 134.7 | 1.787 |
| 900 yd | 877fps | 188ft-lbs | -610.7 | -64.8 | 170.9 | 2.12 |
| 1000 yd | 834fps | 170ft-lbs | -837.7 | -80 | 210.3 | 2.472 |
