Barnes

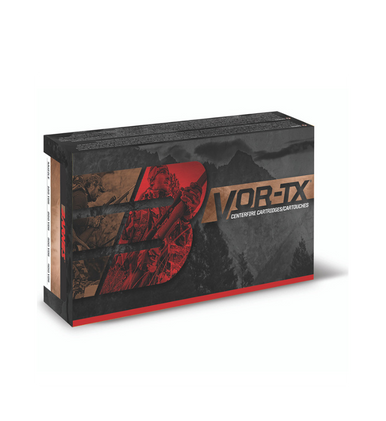

VOR-TX Rifle TTSX 35 Whelen 180 GR
.35 Whelen · 180gr · Tipped Triple-Shock X
Muzzle Velocity
2,900
fps
Muzzle Energy
3,362
ft-lbs
Ballistic Coefficient
0.295 G1
G1
Sectional Density
0.201
Bullet Information
Load Information
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,900fps | 3,361ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,584fps | 2,669ft-lbs | 0 | 0 | 1.1 | 0.11 |
| 200 yd | 2,290fps | 2,095ft-lbs | -3.7 | -1.8 | 4.6 | 0.233 |
| 300 yd | 2,015fps | 1,622ft-lbs | -14.1 | -4.5 | 11 | 0.373 |
| 400 yd | 1,761fps | 1,239ft-lbs | -33.2 | -7.9 | 20.8 | 0.532 |
| 500 yd | 1,532fps | 937ft-lbs | -63.5 | -12.1 | 34.8 | 0.715 |
| 600 yd | 1,333fps | 711ft-lbs | -108.7 | -17.3 | 53.5 | 0.925 |
| 700 yd | 1,175fps | 552ft-lbs | -173.5 | -23.7 | 77.6 | 1.165 |
| 800 yd | 1,062fps | 451ft-lbs | -263.6 | -31.5 | 106.8 | 1.435 |
| 900 yd | 984fps | 387ft-lbs | -384.3 | -40.8 | 140.4 | 1.729 |
| 1000 yd | 925fps | 342ft-lbs | -541 | -51.7 | 177.6 | 2.044 |
