Barnes

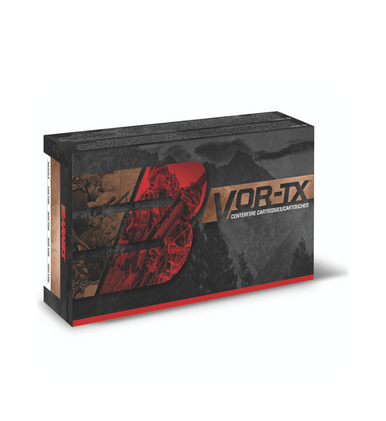

VOR-TX Rifle TAC-TX 6.5 Grendel 115 GR BT
6.5 Grendel · 115gr · TAC-TX
Muzzle Velocity
2,590
fps
Muzzle Energy
1,713
ft-lbs
Ballistic Coefficient
0.387 G1
G1
Sectional Density
0.236
Bullet Information
ManufacturerBarnes
Bullet115gr TAC-TX
Diameter0.264" (6.5mm)
TypeTTSX
BC (G1)0.387 G1
Sectional Density0.236
Load Information
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,590fps | 1,713ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,363fps | 1,426ft-lbs | 0 | 0 | 1 | 0.121 |
| 200 yd | 2,148fps | 1,178ft-lbs | -4.7 | -2.3 | 4 | 0.254 |
| 300 yd | 1,945fps | 965ft-lbs | -17 | -5.4 | 9.5 | 0.401 |
| 400 yd | 1,753fps | 785ft-lbs | -38.6 | -9.2 | 17.7 | 0.564 |
| 500 yd | 1,577fps | 635ft-lbs | -71.5 | -13.6 | 29 | 0.744 |
| 600 yd | 1,417fps | 513ft-lbs | -118.4 | -18.8 | 44 | 0.945 |
| 700 yd | 1,279fps | 417ft-lbs | -182.6 | -24.9 | 62.9 | 1.168 |
| 800 yd | 1,164fps | 346ft-lbs | -268.2 | -32 | 85.8 | 1.414 |
| 900 yd | 1,077fps | 296ft-lbs | -379.4 | -40.3 | 112.7 | 1.683 |
| 1000 yd | 1,012fps | 262ft-lbs | -520.6 | -49.7 | 143 | 1.971 |
