Barnes

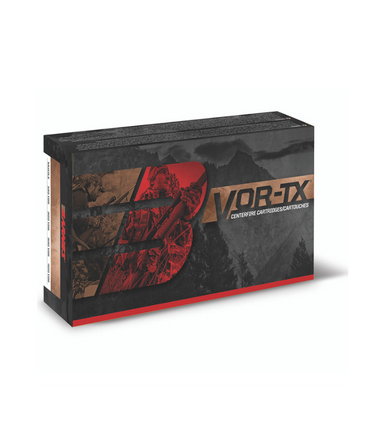

VOR-TX Rifle TTSX 30-06 Sprg 180 GR
.30-06 Springfield · 180gr · Tipped Triple-Shock X
Muzzle Velocity
2,750
fps
Muzzle Energy
3,023
ft-lbs
Ballistic Coefficient
0.245 G7
G7
Sectional Density
0.271
Bullet Information
ManufacturerBarnes
Bullet180gr Tipped Triple-Shock X
Diameter0.308" (7.62mm)
TypeTTSX
BC (G7)0.245 G7
BC (G1)0.484 G1
Sectional Density0.271
Load Information
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,750fps | 3,022ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,563fps | 2,625ft-lbs | 0 | 0 | 0.7 | 0.113 |
| 200 yd | 2,383fps | 2,269ft-lbs | -3.8 | -1.8 | 2.9 | 0.234 |
| 300 yd | 2,210fps | 1,952ft-lbs | -13.7 | -4.4 | 6.7 | 0.365 |
| 400 yd | 2,045fps | 1,671ft-lbs | -30.8 | -7.4 | 12.3 | 0.506 |
| 500 yd | 1,887fps | 1,423ft-lbs | -56.2 | -10.7 | 20 | 0.659 |
| 600 yd | 1,735fps | 1,203ft-lbs | -91.4 | -14.5 | 30 | 0.825 |
| 700 yd | 1,588fps | 1,008ft-lbs | -138.2 | -18.8 | 42.6 | 1.006 |
| 800 yd | 1,448fps | 837ft-lbs | -198.7 | -23.7 | 58.2 | 1.203 |
| 900 yd | 1,313fps | 689ft-lbs | -276 | -29.3 | 77.3 | 1.421 |
| 1000 yd | 1,186fps | 562ft-lbs | -373.5 | -35.7 | 100.4 | 1.662 |
